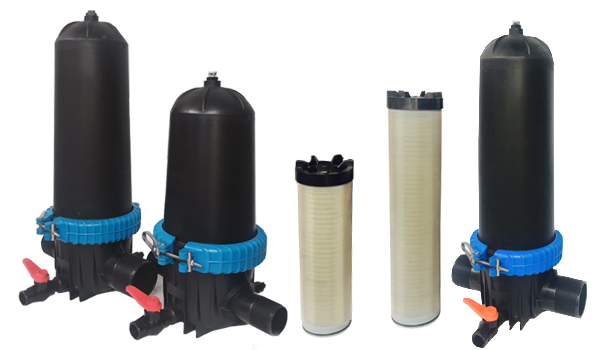

We are Manufacturer, Supplier and Exporter of Plastic Screen Filters and our setup is situated in Sangli, Maharashtra, India.
Features :
- Non Corrosive
- Easy Clamp arrangement
- High Volume filter with an increased flow capacity
- Pressure gauge points at inlet & outlet
- Suitable for horizontal & vertical installation
- Easy maintenance
- With drain port arrangement
RANG OF RECOMMENDED FLOW RATES |
||
Model |
Min. flow (m3/hr.) |
Max. flow (m3/hr.) |
a) 20 m3/hr. |
16 |
25 |
b) 30 m3/hr. |
24 |
36 |
c) 40 m3/hr. |
32 |
48 |
TECHNICAL DATA |
||||
Model |
Inlet mm |
Outlet mm |
Flush mm |
Strainer/ Element lengt hmm |
SKP-20 |
2"/50 NB |
2"/50 NB |
3/4" 20 NB |
337 |
SKP-30 |
2.5"/65 NB |
2.5"/65 NB |
3/4" 20 NB |
337 |
SKP-40 |
3"/80 NB |
3"/80 NB |
3/4" 20 NB |
495 |
Model - Type of Connections to piping Network
SKP - 20 m3 - 50 mm (2") male thread end as per IS 2643 : 1975
SKP - 30 m3 - 65 mm (2.5") male thread end as per IS 2643 : 1975
SKP - 40 m3 - 80 mm (3") male thread end as per IS 2643 : 1975
